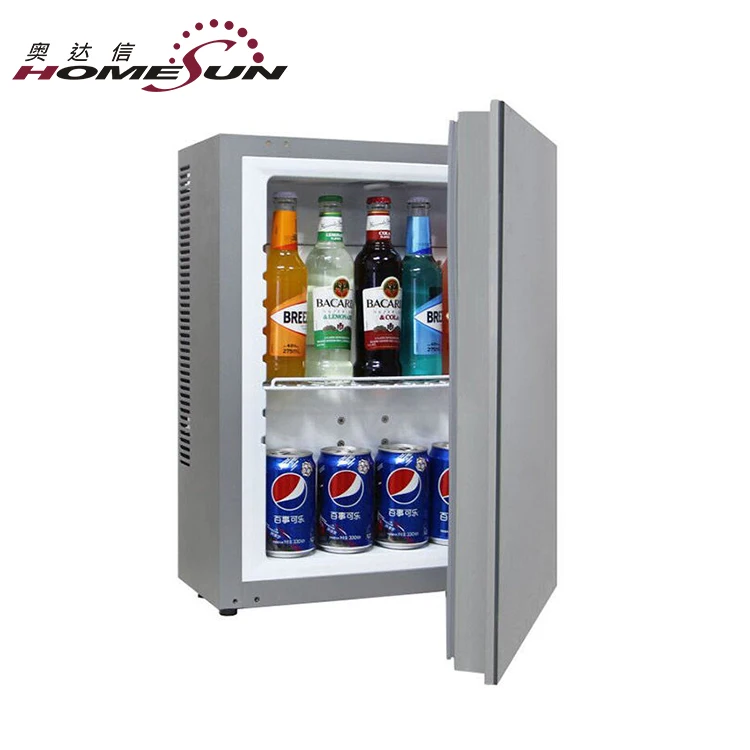

OEM ODM 12L Portable Minibar Hotelelectronic, Wall Mounted Minibars, Italian Mini Bar

FOB Reference Price:Get Latest Price
$40.00 - $200.00 / Unit | 830 Unit/Units (Min. Order)
Color:
GRAY
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
HOMESUN
Type:
Compact
Material:
Plastic
Feature:
Thermoelectric
Installation:
Portable
Certification:
CB, CE, ETL, RoHS, REACH
Fridge Capacity:
12L
Freezer Capacity:
0
Power Source:
Electricity
Defrost Type:
Auto-Defrost
Dimensions (L x W x H (Inches):
402 *222 * 522
Power (W):
65
Voltage (V):
110.220
Condition:
New
Name:
WALL MINIBAR
Model No.:
BCH-12B
Color:
Black/White or other color for optional
Defrosting:
Auto
Door:
Foamed Door
Application:
Hotel Bar
Function:
Drink Cool
Cooling system:
Thermoelectric Cooling
Temperature:
8°C
Voltage, Frequency (V / Hz):
220-240V/50Hz 110-120V/60Hz
Supply Ability
Supply Ability:
70000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard export package with one brown carton
Port
Nansha port of China
Video Description



BCH-12B Hotel Room Wall Mounted Mini Beverage Refrigerator Price



Product Description



Fridge net capacity (L)

 12

Product sizes(W*D*Hmm)

 402 x 222 x 522

Packing sizes(W*D*Hmm)

 465 x 295 x 605

Net weight (kg)

 11.6

Gross weight (kg)

 13

Loading (20'/40'/40'HQ)

 350/730/830

Color

 Black/White or other color for optional

Certificate

 CE,CB, RoHS, REACH, ETL

Feature

Wall mounted,with bracket attached to the wall

Heat-pipe technology

100% noise free and vibration free

CFC-free, environmental friendly

Auto-defrost

Adjustable thermostat for ideal temperature control

Soft interior LED light on top

Cooling 8°C/46°F under ambient temperature 25℃

Power source 220-240V/50-60Hz or 110-120V/60Hz

Power input 65W

Black/White or other color for optional

* Optional lock&key

* Optional glass door: cooling 12-18C (under ambient 25℃)

* Optional mirror glass door

 BCH-12-13BCH-12
Detailed Images


paste-pic-dp_uuid_f5800

Related Products

Compressor Minibar

Project Case

 2-8_02

Production Process

 2-8_06

Company Information

 2-8_082-8_092-8_10



FAQ



Q: Why so hot on both sides or on the door frame of the refrigerator?

A: This phenomenon is not a malfunction,Because the condenser pipes on both sides of the refrigerator, when the refrigerator starts running, the compressor discharges high temperature and high pressure refrigerant through the condenser then releases the heat to the outside, youll feel hot on both sides or on the door frame if any, and if the refrigerator is placed in the environment not well-ventilated, it will cause poor cooling effect. This is not a malfunction.



Q:  Why there are mist or dew on the glass door surface of Refrigerator/Wine?

A: Mist/dew on the surface of glass door is a normal phenomenon.

If there is a temperature difference between inside and outside, especially in summer indoor temperature and high relative humidity conditions, the glass door and the ambient temperature there is a big temperature difference, then the vapor in the air will be condensed on the glass surface to dew, this is normal phenomenon. Just as in the winter driving, the windows not opened or without running the air- conditioner, there will be mist phenomenon.

Please wipe it off regularly with a dry rag when you are free.



Q:  Why the refrigerator can’t work?

A:   If the refrigerator can’t start working, mainly to check the following points:

(1) Check the plug or power socket is no problem;

(2) Whether the thermostat is in "0" position;

(3)  When the ambient temperature is below 10 degrees Celsius, the thermostat is set in the lower position and the temperature compensation switch is set to the "OFF" position.



Q:  How to make the right setting on the thermostat?

A : With the thermostat setting points from 0-7 (or 0-5) , the cooling capacity is strengthened gradually, if at the same ambient temperature, the greater setting, the lower temperature inside , likewise, the smaller number, the higher temperature inside.

Under normal circumstances, in winter temperature is low, close to the refrigerator shutdown temperature, it should be set to 4-5 position; in summer hot temperature, close to the start temperature, easily to cause non-stop, it should be set to 1-3 position.



Q:  The reasons cause the refrigerator non-stop?

A :  1) Under normal circumstances, the unit won’t stop running after too much food are placed into the refrigerator, due to too much food it is impossible to stop in a short time, it is beyond the refrigerator's cooling capacity limit, in this case you should remove some of the food, which is not a malfunction.

  2) The thermostat point is set to wrong position, or the user set it to the  highest position accidentally, such as “6or 7points, this is the long running position or non-stop position, please pay attention to avoid the refrigerator for long working itll cause overheat and breakdown.  Please turn it back to the 3point (normal mid position).
