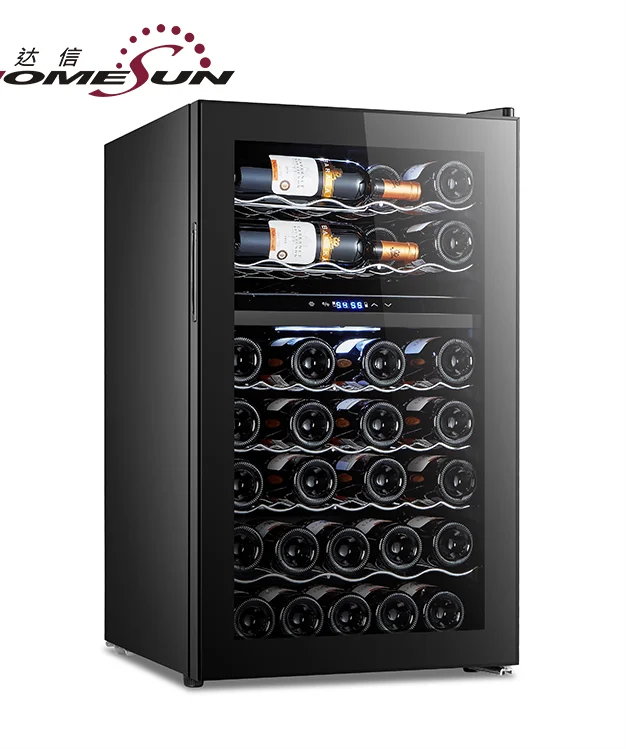

JC-128D 38 Bottles Dual Zone Metal wire shelves Compressor Wine Fridge

FOB Reference Price:Get Latest Price
$40.00 - $200.00 / Unit | 80 Unit/Units (Min. Order)
Customization:
Customized packaging (Min. Order: 80 Units)
Customized logo (Min. Order: 80 Units)

More

Graphic customization (Min. Order: 80 Units) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
HOMESUN
Model Number:
JC-128D
Capacity:
38 bottles
Installation:
Freestanding
Certification:
CB, CE, ETL, RoHS, REACH
Temperature Control:
Electronic Temperature
Dimensions (L x W x H (Inches):
495*565*848 mm
Power (W):
85
Power Source:
Electric
Refrigeration Type:
Compressor Refrigerator
Voltage (V):
220
Temperature Zone:
Dual-Zone
Name:
Wine Chiller
Cabinet color:
black
Cooling Capacity:
Upper zone:5~13°C Lower zone:13~18°C
Voltage/Frequency:
220-240V/50Hz or 110-120V/60Hz
Unit dimension:
495*565*848 mm(W*D*H)
Package dimension:
535*595*880mm(W*D*H)
Loading capacity:
80/164/244 20'/40'/40HQ
Cooling system:
Compressor Cooling
Cubage:
Load 38 Bottles
Supply Ability
Supply Ability:
70000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard export package with one brown carton
Port
NANSHA,CHINA

JC-128D 38 Bottles Dual Zone Metal wire shelves Compressor Wine Fridge



Product Description

Model Number

 JC-128D

Net Capacity

 38Bottles

Cooling Capacity

Upper zone:5~13°C

Lower zone:13~18°C

Voltage/Frequency

220-240V/50Hz or 110-120V/60Hz

Input Power

 85W

Unit Dimension(W*D*H)

495×565×848  (mm)

Packing Dimension(W*D*H)

535×595×880 (mm)

Net/Gross Weight

34.0kg / 37.0kg

Loading Capacity

 80 units/ 20'  164units/ 40'  244 units/ 40'HQ

Optional

Stainless steel door with SS door handle/Blue interior LED light/Wooden shelf

Features

 38 bottles wine cooler

Compressor cooling technology

Electronics control with digital display

Tempered glass door with plastic door frame

Temperature display in Centigrade and Fahrenheit
 Soft interior LED light











FAQ

Q: Why so hot on both sides or on the door frame of the refrigerator?

A: This phenomenon is not a malfunction,Because the condenser pipes on both sides of the refrigerator, when the refrigerator starts running, the compressor discharges high temperature and high pressure refrigerant through the condenser then releases the heat to the outside, youll feel hot on both sides or on the door frame if any, and if the refrigerator is placed in the environment not well-ventilated, it will cause poor cooling effect. This is not a malfunction.



Q:  Why there are mist or dew on the glass door surface of Refrigerator/Wine?

A: Mist/dew on the surface of glass door is a normal phenomenon.

If there is a temperature difference between inside and outside, especially in summer indoor temperature and high relative humidity conditions, the glass door and the ambient temperature there is a big temperature difference, then the vapor in the air will be condensed on the glass surface to dew, this is normal phenomenon. Just as in the winter driving, the windows not opened or without running the air- conditioner, there will be mist phenomenon.

Please wipe it off regularly with a dry rag when you are free.



Q:  Why the refrigerator can’t work?

A:   If the refrigerator can’t start working, mainly to check the following points:

(1) Check the plug or power socket is no problem;

(2) Whether the thermostat is in "0" position;

(3)  When the ambient temperature is below 10 degrees Celsius, the thermostat is set in the lower position and the temperature compensation switch is set to the "OFF" position.



Q:  How to make the right setting on the thermostat?

A : With the thermostat setting points from 0-7 (or 0-5) , the cooling capacity is strengthened gradually, if at the same ambient temperature, the greater setting, the lower temperature inside , likewise, the smaller number, the higher temperature inside.

Under normal circumstances, in winter temperature is low, close to the refrigerator shutdown temperature, it should be set to 4-5 position; in summer hot temperature, close to the start temperature, easily to cause non-stop, it should be set to 1-3 position.



Q:  The reasons cause the refrigerator non-stop?

A :  1) Under normal circumstances, the unit won’t stop running after too much food are placed into the refrigerator, due to too much food it is impossible to stop in a short time, it is beyond the refrigerator's cooling capacity limit, in this case you should remove some of the food, which is not a malfunction.

  2) The thermostat point is set to wrong position, or the user set it to the  highest position accidentally, such as “6” or 7” points, this is the long running position or non-stop position, please pay attention to avoid the refrigerator for long working itll cause overheat and breakdown.  Please turn it back to the 3” point (normal mid position).
